Being a high depth of cut, form generating grinding process, Flute grinding operations are at high speeds and remove material at rates comparable to machining process rather than grinding. A combination of peripheral and surface grinding actions, the depth of cut, width of cut, form retention and surface finish are crucial parameters.

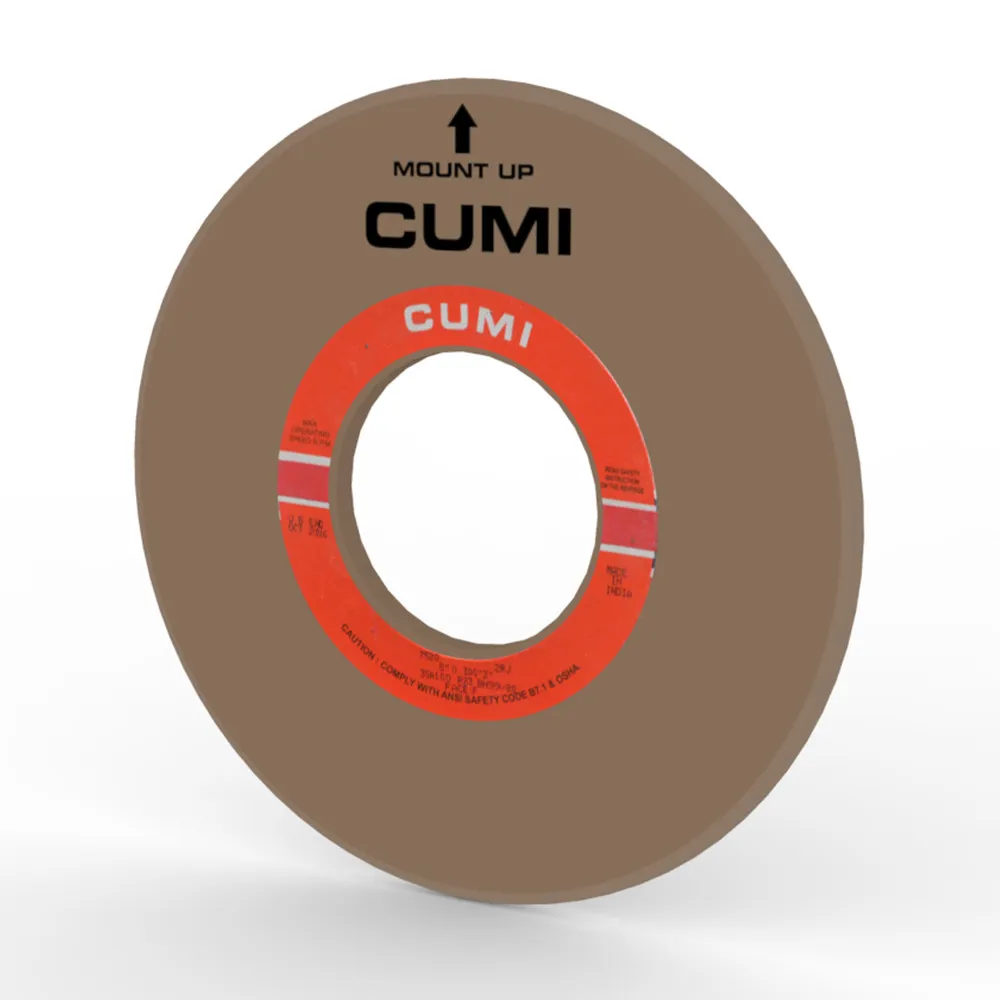

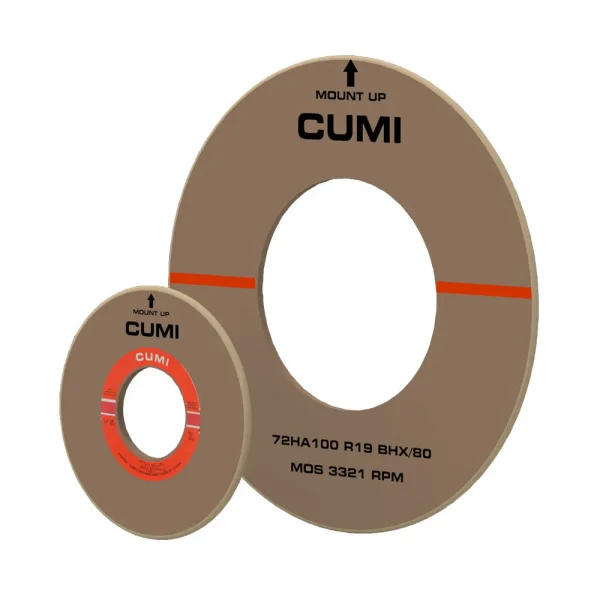

CUMI Flute grinding wheels are specially engineered high density (near zero porosity), resin bonded wheels which ensure that the form is generated with utmost precision and finesse. These wheels truly are a testament to the expertise that CUMI has built over the years.
| CUMI Code | Grit | Diameter (mm) | Diameter (Inch) | Thickness (mm) | Thickness (Inch) | Face | Coolant slot | Speed |
|---|---|---|---|---|---|---|---|---|
| CUMISA/CSA | 80 - 150 | 150 - 500 | 6 - 20 | 4 - 20 | 0.16 - 0.8 | F | Slotted | 15750 |
| SA | ||||||||
| RA | ||||||||
| AA |
| Operation | Component | Best | Better | Good |
|---|---|---|---|---|

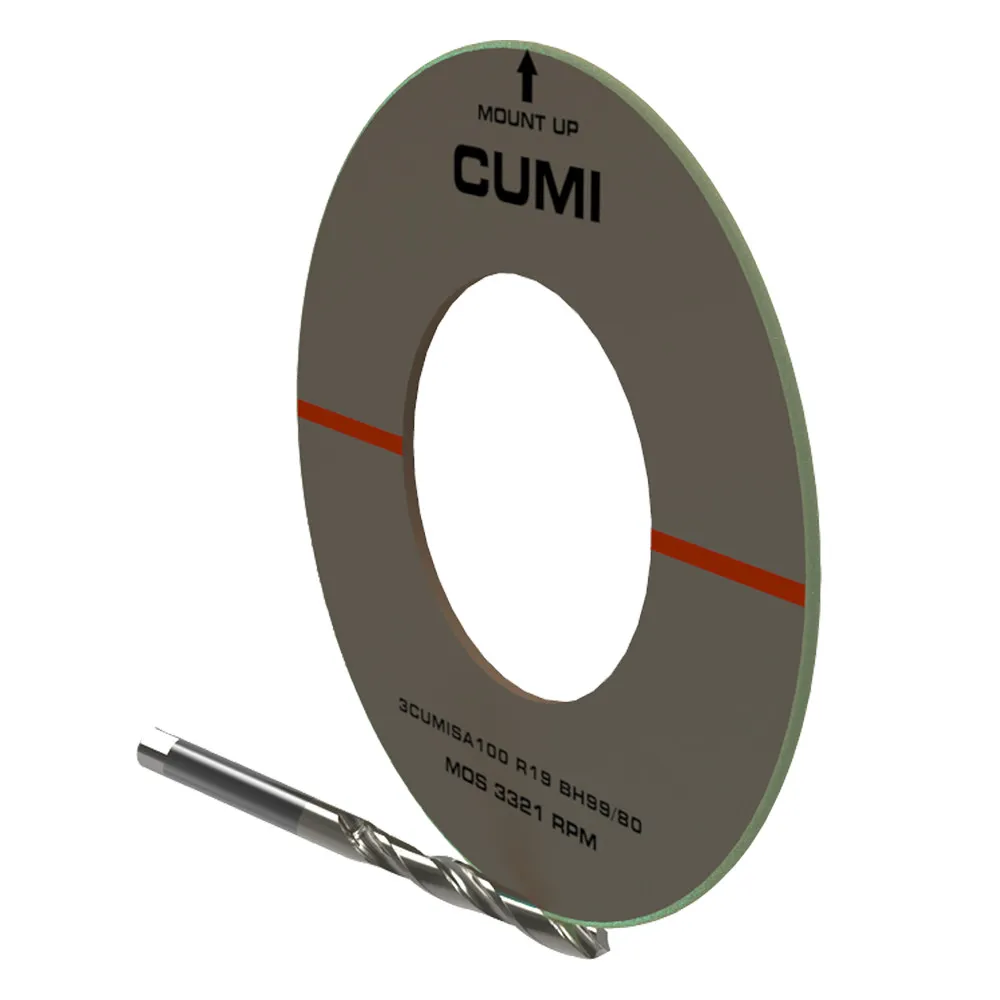

| Flute grinding | Drills | 3CUMISA100 R19 BH99/80 | 3CUMISA100 R19 BHX/80 | 3SA100 R19 BHK/80 |
| Point grinding | Drills | - | - | AA100 S12 BHP/60 AA100 S12 BH47/80 |
| Clearance grinding | Drills | 3CUMISA100 Q24 BH99/80 | 3SA100 Q24 BH99/80 | AA80 Q21 BH99/80 |
