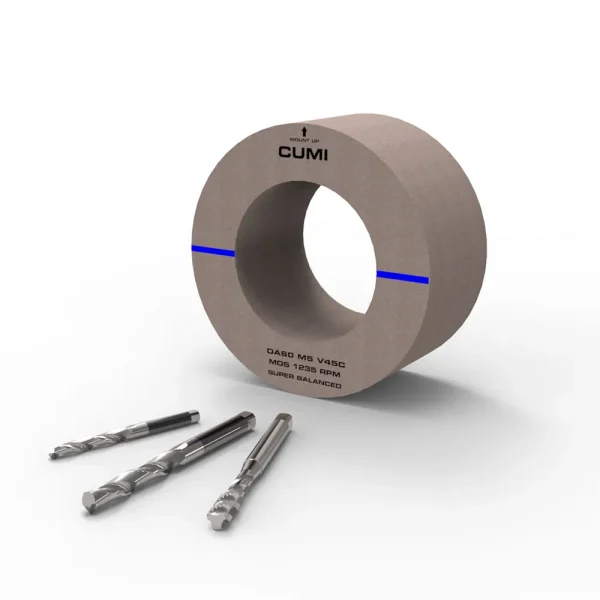

Centerless Grinding – Drills & Taps

Good

An application which presents the most daunting challenges to any abrasive manufacturer. The range of requirements and priorities of this application varies from product to product which calls for an equally wide range of offerings to suit the same. Since in most of the Centerless applications, more than one wheel is mounted on the spindle, extremely tight tolerances need to be maintained in the geometry and densities of the wheels to ensure uniform wear patterns even if each wheel in the set is different. CUMI has the expertise, when it comes to Centerless applications thanks to the advanced manufacturing process, premium Abrasive grains and specially designed Vitrified, Resin and Rubber bond systems to suit the application needs. Customized solutions are provided for every application and specific requirement. Be it through-feed, end-feed or in-feed, CUMI wheels ensure that components are finished to stringent quality requirements.

Information Material:

Product Catalogue

Type	Operation	Speed	Best	Better	Good
Drills & Taps	Rough	35	5SBA463 M5 V10C	A463 L5 V446C	A463 L5 V10C
	Rough	50	5SBA463 M5 V50C	A463 L5 V446C/50	A463 L5 V50C
	Semi Finish	35	DA60 M5 V10C	A60 L5 V446C	A60 L5 V10C
	Semi Finish	50	DA60 M5 V50C	A60 L5 V446C/50	A60 L5 V50C
	Finish	35	DA80 K5 V10C	A80 K5 V446C	A80 K5 V10C
	Finish	50	DA80 K5 V50C	A80 K5 V446C/50	A80 K5 V50C

CUMI Code	Grit Range	Diameter		Thickness		Hardness	Structure	Speed
CUMI Code	Grit Range	(mm)	(Inch)	(mm)	(Inch)	Hardness	Structure	(mps)
CUMISA	46 - 120	350 - 610	14 - 24	100 - 250	4 - 10	I - N	6 & 8	35, 50 & 63
50A / 50MA	46 - 120					I - N	7	35 & 50
65A	80 - 220					L	-	40
SA	46 - 120					I - N	5 - 7	35 & 50
9A	46 - 120					I - P	5 - 7	35 & 50
SBA	46 - 120					I - P	5 - 7	35 & 50
AA	46 - 120					I - P	5 - 7	35 & 50
DA	46 - 120			100 - 300	4 - 12	I - P	5 - 7	35 & 50
A	46 - 120					I - P	5 - 7	35 & 50
C	46 - 120					I - N	5 - 7	35 & 50
GC	46 - 120					I - N	5 - 7	35 & 50

Product Information

Features

- Unique set of combination wheels

- Unique grain combination

- Cork bond

- Wide range of bond system

Benefits

- Good surface roughness and higher productivity

- Superior surface roughness & luster

- Customize individual grinding needs

Advantages

- High stock removal

- Lower dressing frequency

- Burn free component

- Better productivity

- Excellent surface finish

Product Uses

Industries

Cutting Tool

Applications

Centreless
