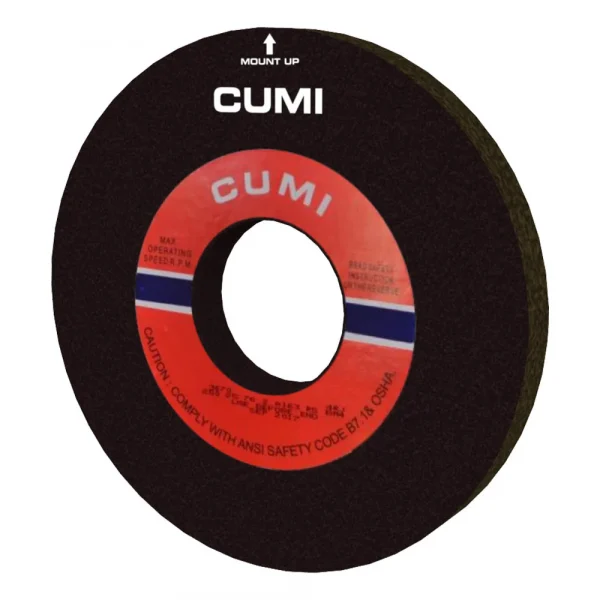

Snagging Wheel – Portable

Good

One of the roughest and toughest applications in the industry, snagging operations focus primarily on the material removal rates. With high wheel speeds and manual grinding involved, the product design calls for robustness that gives utmost safety while addressing the material removal requirements of the user. CUMI wheels stand up to this tough task, thanks to a rugged combination of specially formulated resins and toughened grains. The reinforced bores ensure that the product is extremely safety use in spite of the rugged nature of the applications.

Information Material:

Product Catalogue

Type of Roll	Speed	For Better Life	For Better MRR
Carbon Steel & Low Alloy Steel	50	A163 R3 TDR1215	A163 R5 BM4
High Alloy Steel & Stainless Steel		A163 R2 BM4	A163 Q5 BM4
Hi-Chrome Steel		AZA163 TDR1175	AZA143 TDR1214
Grey Cast Iron & SG Iron		C163 Q3 B1551	CA163 TDR1219

CUMI Code	Grit Range	Diameter		Thickness		Speed	Hardness	Structure
		(mm)	(inch)	(mm)	(inch)	(mps)
AZA	12 - 24	50 - 200	2 - 8	10 - 25	1/64 - 1	50	M - R	2 - 9
CA	14 - 24
C
A

Product Information

Features

- Rounded

- Tough abrasives

- Strong and tough resin

- Grinding aids

- High accuracy finishing of wheels

Benefits

- Bond for durability

- Cool cutting

- Better geometry

Advantage

- Excellent cutting action

- Higher productivity

- Controlled wear and longer wheel life

- Burn free surface

- Unparalleled safety

Product Uses

Industries

Steel
