IR Track Grinding Wheels – Bearing Industry

Name: IR Track Grinding Wheels - Bearing Industry
Brand: CUMI Abrasives
SKU: IR-TGW-BI-001
Author: CUMI Abrasive Team

Good

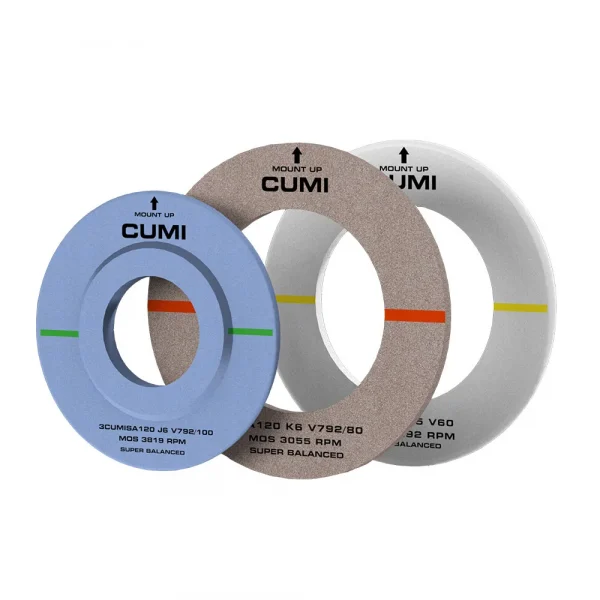

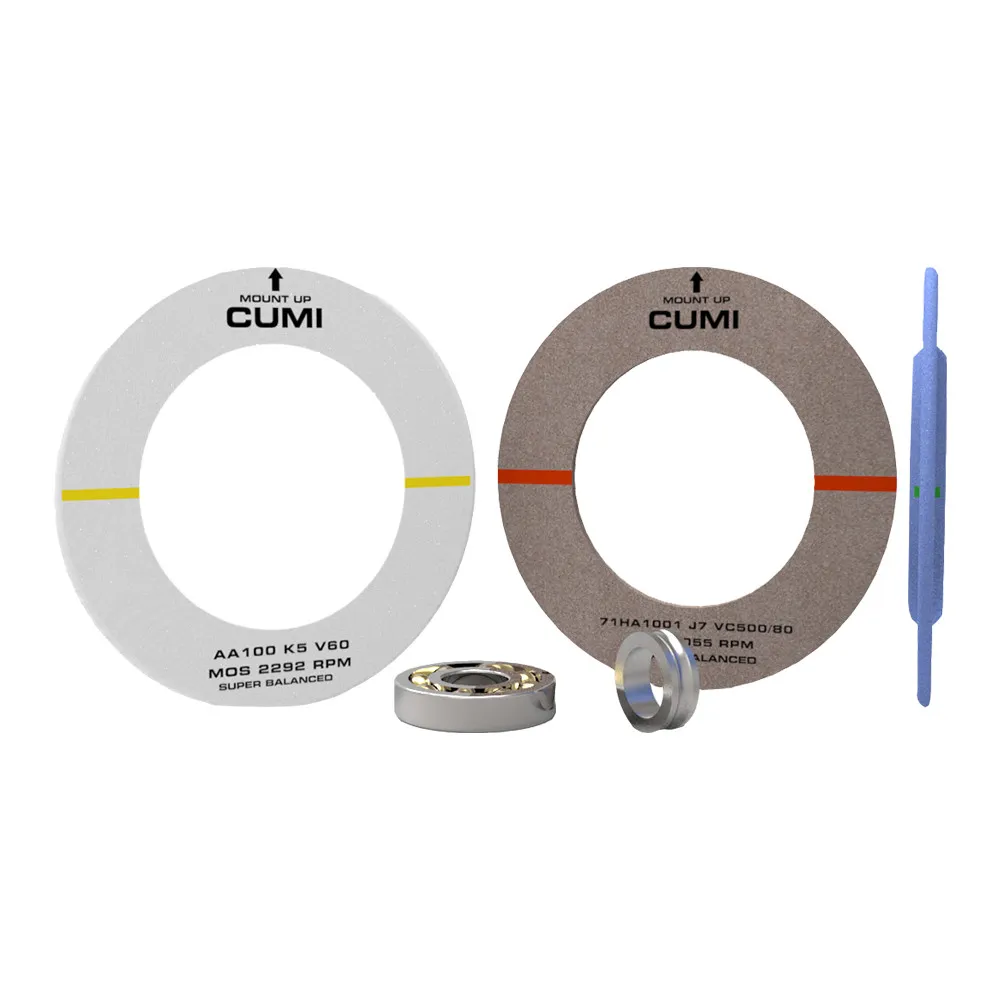

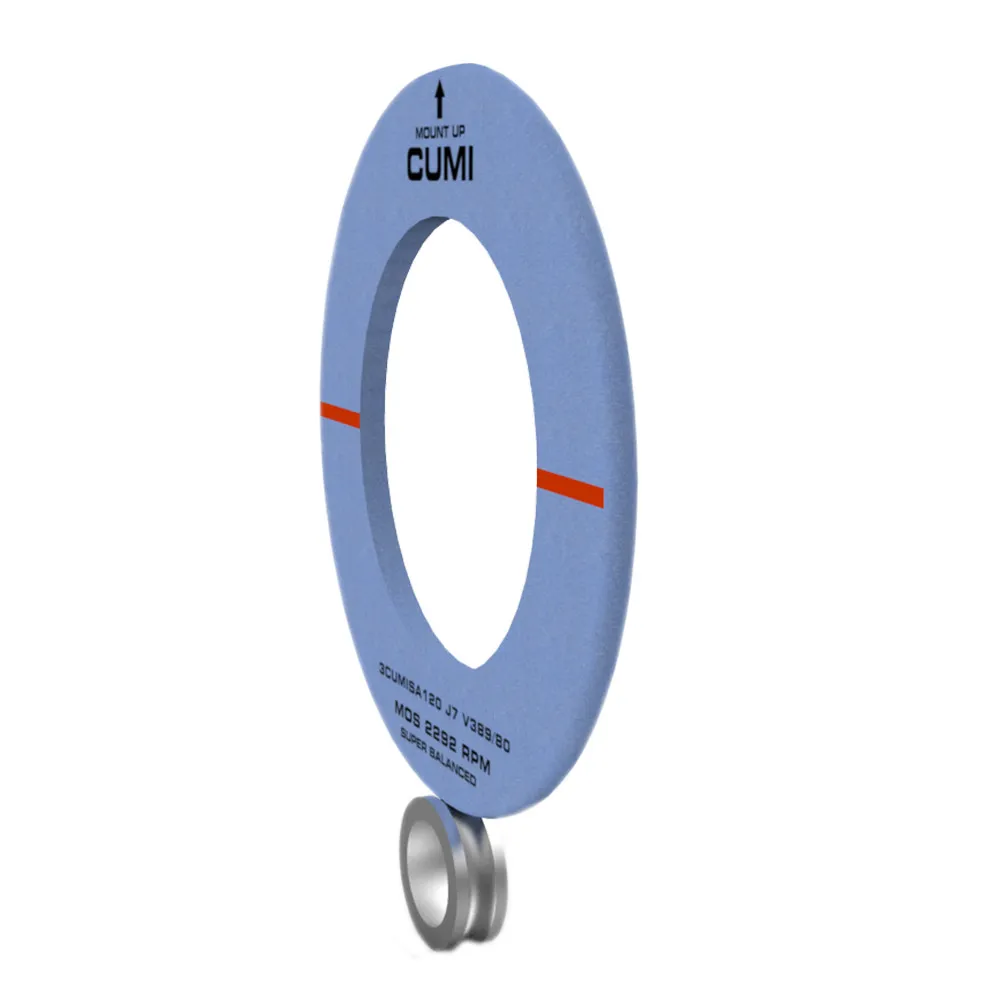

CUMl’s IR Track grinding wheels utilize a special fusible glassy bond combined with a sharp abrasive grain, which ensures effective form holding and high material removal rates in applications involving high contact areas. An advanced manufacturing process ensures that the wheel’s hardness is consistent through the wheel life and the highest levels of safety are maintained. With all the latest advancements in the field of automobiles and machine manufacturers, the functions of bearings are now more crucial than ever before, thereby placing greater demands on the quality of bearings. Track grinding wheels must maintain their shape to ensure the profile accuracy of the inner ring’s track. This ensures that the wheels are dressed less often, leading to significant improvements in productivity and consistency in the process.

Brand: CUMI

Information Material:

Product Catalogue

Bearing Type	Bearing Size	Speed	Good	Better	Best
Taper Roller Bearing (TRB)	up to 50mm	35	DA120 L7 V1092	12A120 K5 VCOOL	55A120 K7 VC500
		50	DA120 K7 V1092/50	-	55A120 K7 VC500/50
		63	AA120 K5 V60	-	-
		80	55A120 K6 V792/80	-	3CUMISA120 J7 V389/80
		100	55A120 K6 V792/100	-	3CUMISA120 J6 V792/100
	Above 50mm	35	A100 L7 V1092	-	AA100 L5 VF8
		50	DA100 K7 V1092/50	-	55A100 K7 VC500/50
		63	AA100 K5 V60	-	3CUMISA100 K7 V389/60
		80	55A100 J6 V792/100	-	3CUMISA100 J7 V389/80
		100	55A100 J6 V792/100	-	3CUMISA100 J6 V792/100
Ball Bearing	All	35	DA120 L7 V1092	-	55A120 L7 VC500
		50	DA120 K7 V1092/50	-	55A120 K7 VC500/50
		63	AA100 K5 V60	-	2CN1001 J6 V308C/60 3CSA1001 J6 V3O8C/60
		80	55A1001 J7 VC500/80	-	2CN1001 I6 V308C/80
		100	55A120 K6 V792/100	-	3CUMISA120J6 V792/100

CUMI Code	Grit Range	Diameter		Thickness		Speed	Hardness	Structure
		mm	inch	mm	inch	mps
CN	80 - 150	350 - 610	14 - 24	10 - 40	3/8 - 1 1/2	33, 50, 63, 80, 100	I - L	5 - 7
50A
CUMISA/CSA
AA

Product Information

Features

- Sharp crystal aluminium oxide grains

- Krystal bond for form holding & Safety

Benefits

- Customized profiling as per requirement

- Profile holding & form retention

- Less dressing intervention

Advantages

- Burn free component

- Surface finish (0.3-0.4 Ra)

- Roundness ( <SQ)

Product Uses

Industries

Auto/Auto Ancillary

Bearing

Cutting Tool

Product Description

IR Track Grinding Wheels for Bearing Industry

Inner Ring (IR) track grinding is one of the most critical finishing steps in bearing manufacturing, affecting load distribution, rotational accuracy, and bearing life. CUMI IR Track Grinding Wheels are engineered using a special fusible glassy bond and sharp precision abrasive grains to maintain form consistency, reduce dressing frequency, and deliver high stock removal even under continuous high-contact grinding.

Feature → Advantage → Benefit

Glassy vitrified bond → excellent form holding → maintains inner-track accuracy and reduces rejection
Sharp precision abrasive grains → aggressive cutting action → faster stock removal & shorter production cycles
Consistent hardness throughout wheel life → same performance from start to end → predictable machining outcome
Designed for high-contact grinding area → optimized heat control → prevents burns & micro-cracks on bearing raceways
Reduced dressing requirement → less downtime → maximizes productivity and throughput in bearing plants

Industry: Bearing industry – IR (inner ring) raceway & track grinding in high-precision bearings

FAQs

01.

Which industry uses IR Track Grinding Wheels? Specially used in the Bearing Industry for finishing inner ring tracks.

02.

Why is form holding so important in IR grinding? It ensures profile accuracy so the bearing maintains correct load distribution and lifespan.

03.

Does the IR grinding wheel reduce dressing frequency? Yes — its glassy bond maintains shape longer, reducing dressing operations.

04.

Can JR Grinding wheel handle high-contact grinding areas? Yes — IR Grinding wheel is engineered for continuous-duty high-pressure grinding zones.

05.

Are these IR Grinding wheels safe for high-speed grinding? Yes — CUMI uses advanced safety-tested manufacturing to ensure wheel integrity throughout life.
