Centerless Grinding – Aerospace Centerless Grinding Wheel

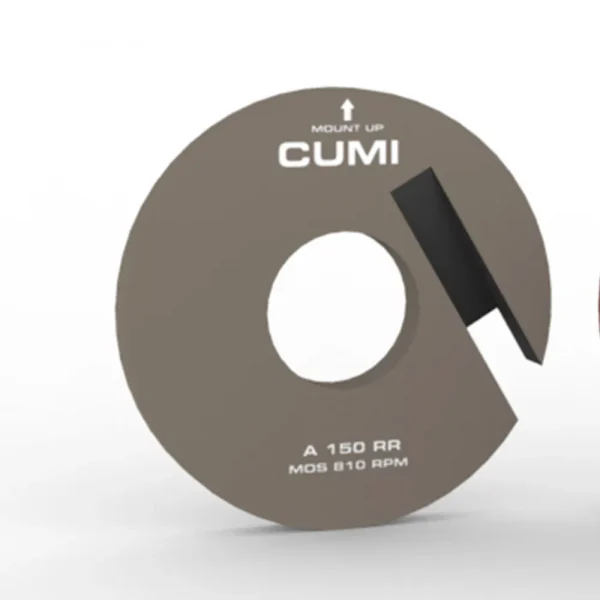

Name: Centerless Grinding - Feed/Regulating Wheels
Brand: CUMI Abrasives
SKU: CGW-FRW-001
Author: CUMI Abrasive Team

An application which presents the most daunting challenges to any abrasive manufacturer. The range of requirements and priorities of this application varies from product to product which calls for an equally wide range of offerings to suit the same. Since in most of the Centerless applications, more than one wheel is mounted on the spindle, extremely tight tolerances need to be maintained in the geometry and densities of the wheels to ensure uniform wear patterns even if each wheel in the set is different. CUMI has the expertise, when it comes to Centerless applications thanks to the advanced manufacturing process, premium Abrasive grains and specially designed Vitrified, Resin and Rubber bond systems to suit the application needs. Customized solutions are provided for every application and specific requirement. Be it through-feed, end-feed or in-feed, CUMI wheels ensure that components are finished to stringent quality requirements.

Brand: CUMI

Information Material:

Product Catalogue

For Rough	A80 RR
For Size Control	A120 RR
For Size Control	A 150 RR
For Size Control & Better Finish	A180 RR
For Size Control & Better Finish	A180 TR

CUMI Code	Grit Range	Diameter		Thickness		Hardness	Structure	Speed
CUMI Code	Grit Range	(mm)	(Inch)	(mm)	(Inch)	Hardness	Structure	(mps)
CUMISA	46 - 120	350 - 610	14 - 24	100 - 250	4 - 10	I - N	6 & 8	35, 50 & 63
50A / 50MA	46 - 120					I - N	7	35 & 50
65A	80 - 220					L	-	40
SA	46 - 120					I - N	5 - 7	35 & 50
9A	46 - 120					I - P	5 - 7	35 & 50
SBA	46 - 120					I - P	5 - 7	35 & 50
AA	46 - 120					I - P	5 - 7	35 & 50
DA	46 - 120			100 - 300	4 - 12	I - P	5 - 7	35 & 50
A	46 - 120					I - P	5 - 7	35 & 50
C	46 - 120					I - N	5 - 7	35 & 50
GC	46 - 120					I - N	5 - 7	35 & 50

Product Uses

Industries

Aerospace

Applications

Centreless

Product Description

Centerless grinding wheels – Description

Centerless grinding wheels are precision-engineered abrasive tools designed for high-accuracy cylindrical grinding on centreless machines, particularly in demanding aerospace manufacturing environments. Unlike conventional grinding, centerless grinding supports the workpiece between a grinding wheel and a regulating wheel, eliminating the need for centers or chucks and enabling continuous, high-throughput operations with exceptional dimensional control.

In aerospace applications, a centerless grinding wheel plays a critical role in producing components that require tight tolerances, consistent roundness, and superior surface finish. These wheels are commonly used for grinding shafts, pins, rods, and other cylindrical parts manufactured from high-strength alloys, titanium, and other aerospace-grade materials. The controlled abrasive action ensures stable grinding performance while minimizing thermal damage and maintaining component integrity.

Designed to operate across through-feed, end-feed, and in-feed processes, centreless wheels for aerospace are built to deliver uniform wear, predictable performance, and long service life on Centreless Machines. Their optimized grain and bond systems support reduced dressing frequency and improved process stability, making them suitable for both high-volume production and precision batch grinding. For aerospace manufacturers focused on repeatability, quality compliance, and productivity, centerless grinding wheels provide a reliable and proven solution.

Features & Benefits

Precision-engineered centerless grinding wheel construction – Delivers tight diameter control and consistent roundness on aerospace components
Optimized abrasive grain and bond systems – Enable efficient stock removal with controlled heat generation
Designed for centreless machines – Supports through-feed, end-feed, and in-feed grinding operations
Stable grinding performance – Maintains uniform wear patterns for predictable results over long production runs
Reduced dressing frequency – Minimizes machine downtime and improves operational efficiency
Suitable for aerospace-grade materials – Performs reliably on high-strength alloys and critical cylindrical parts

FAQs

01.

What is a centerless grinding wheel used for? A centerless grinding wheel is used to grind cylindrical components without the use of centers, achieving high accuracy, roundness, and surface finish.

02.

Which machines use centerless grinding wheels? These wheels are used on centreless grinding machines, including through-feed, end-feed, and in-feed configurations.

03.

Why are centerless wheels preferred for aerospace components? They provide tight tolerances, consistent geometry, and reliable surface quality required for aerospace applications.

04.

Can centerless grinding wheels handle high-strength aerospace materials? Yes, they are designed to perform effectively on aerospace alloys such as titanium and other high-strength metals.

05.
